MECATECK – FLEX – TC

MECATECK – FLEX – TCCyclothermic tunnel ovenCyclothermic tunnel ovenThe Mecateck multi-deck tunnel oven, Flex TC, is an indirectly heated convection oven. The forced hot air flow around the product boosts heat exchange, reducing considerably the baking time and ensures extremely even temperatures inside the baking chambers.
Baking temperatures range from 150 °C to 280 °CHEATING SYSTEM Heat is supplied by radiating tubes placed inside the baking chamber, over and under the conveyor. The oven operates on the principle of hot gases, generated by a burner, circulating inside a closed circuit (cyclothermic system).
TURBOLENCE ZONES Turbolence zones providing convection heat are also available on request.

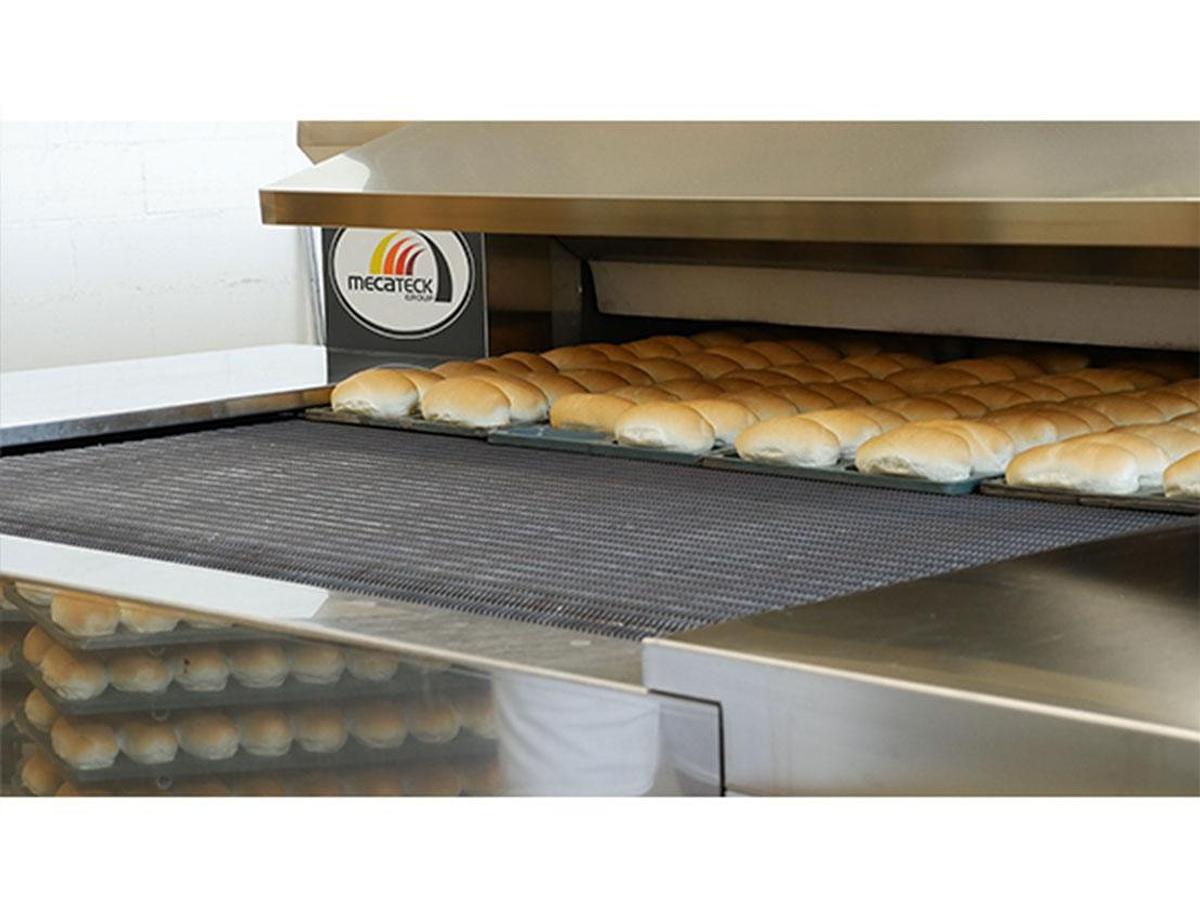

CONVEYORS The oven can be equipped with wiremesh baking conveyor, steel plate conveyor, stone slabs conveyor or OGB type conveyor.

STEAMING SYSTEM A powerful steaming unit is available as an option.

HOODS, LOADING AND UNLOADING FACADES In stainless steel AISI 304. Large hoods complete with vapour extractor.

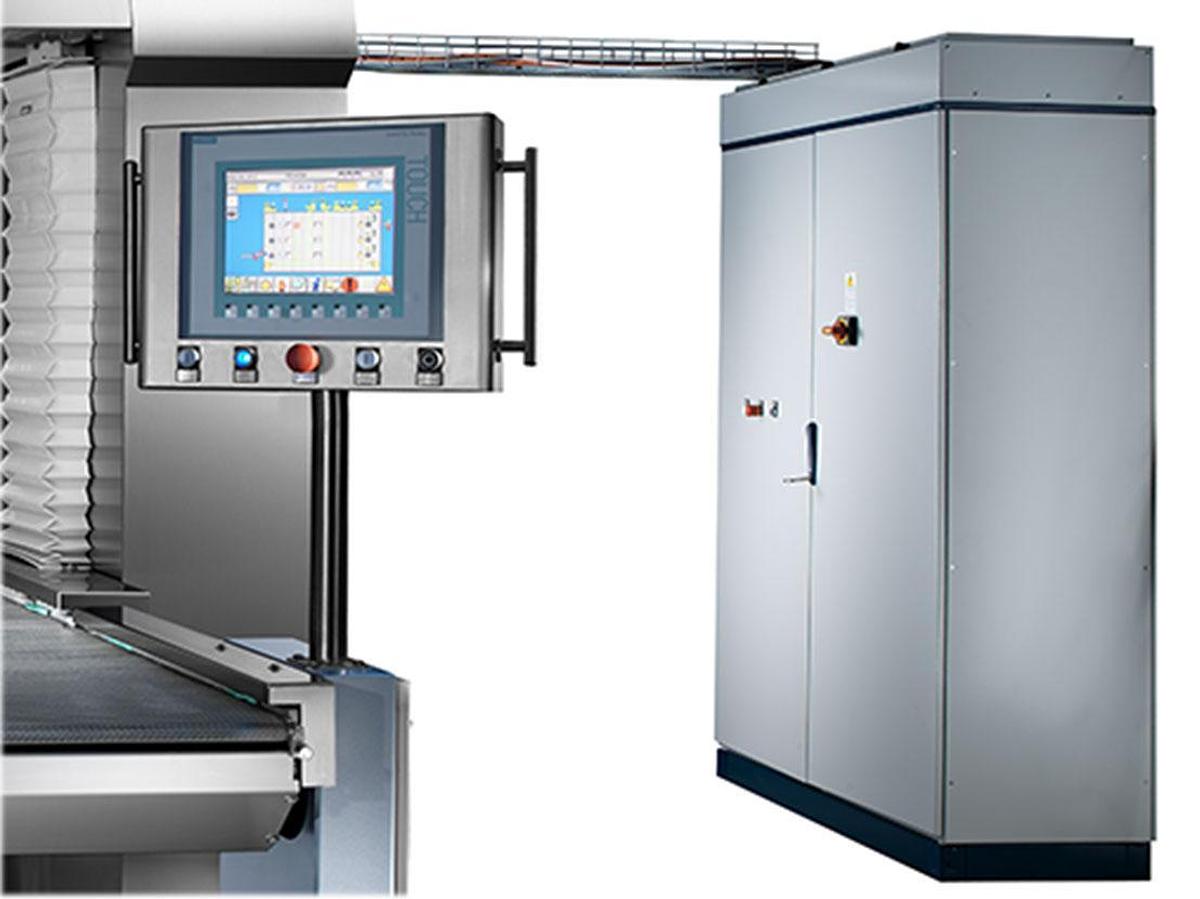

CONTROL SYSTEM Fully computerized 10’’ touch-screen main panel. The electrical board always includes a modem for on line connection to the MECATECK service center for a quick and safe diagnosis.

Features

• High product development, very gradual and uniform baking.

• Each baking zone can be controlled independently.

• Thanks to its modular structure, oven sections can be combined to create the ideal baking temperature curve.

• Simple operations and control.

• Easy and cost effective maintenance.
